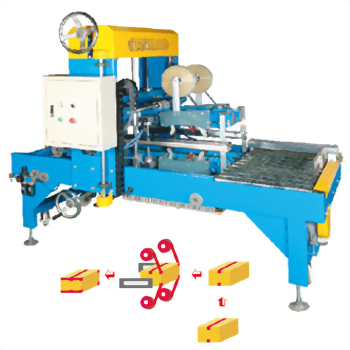

TC-704L
Four Sides Carton Edge Sealer (L Type)
The ideal for sealing top & bottom edges simultaneously.
Provides extra security for heavily loaded cartons.
Provides extra security for heavily loaded cartons.
**Custom Design Available**
>
**Custom Design Available**
|
Power
|
220V/380V/415V, 50/60 Hz , 3 Phase | ||||||
|
Packing size
|
L380~600 , W200~550 , H190~500 mm | ||||||
|
Speed
|
1~8 Cases/Min | ||||||
|
Tape
|
2" (2.5"、3" Optional) | ||||||
|
Table height
|
650 mm (Adjustable Range 600~750 mm) | ||||||
|
Air
|
5 kg/cm² | ||||||
|
Machine weight
|
420 kgs | ||||||
|
Machine size
|
L2270 x W1530 x H1750 mm | ||||||
