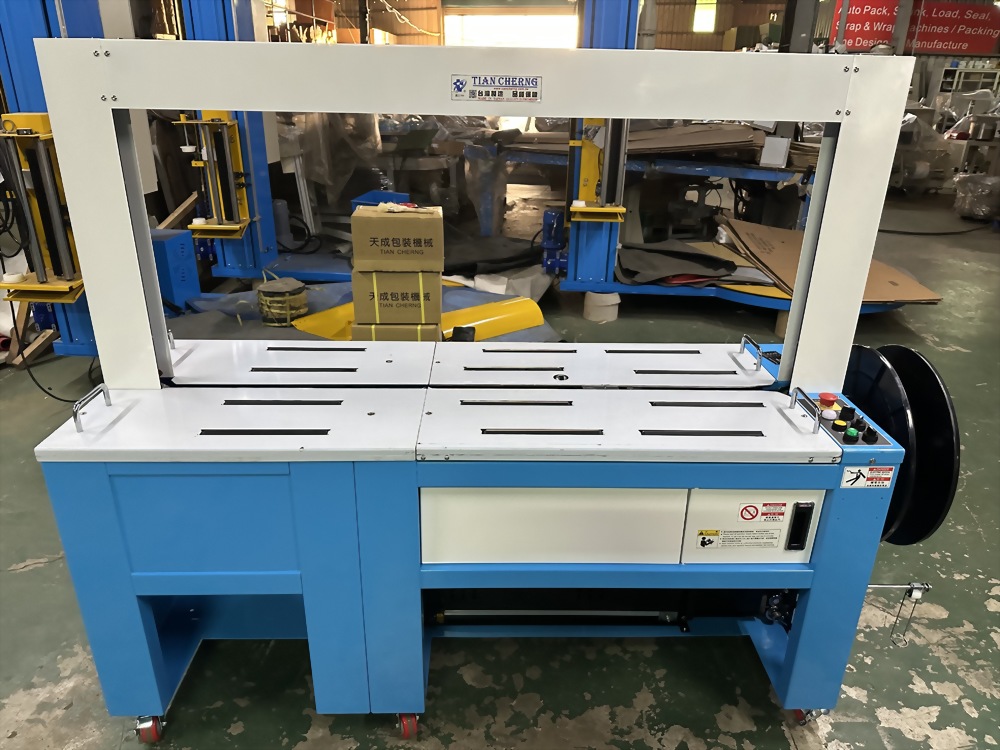

TC-8560A
Full Auto Strapping Machine(Standard Type)

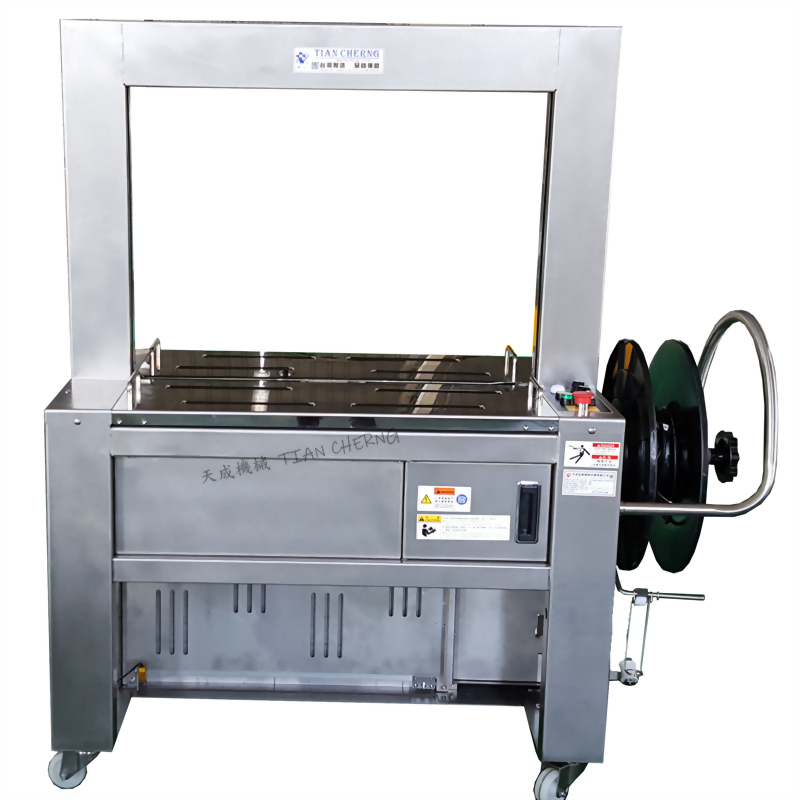

Various size of arch can be made accoeding to customer's requirement,and a stainless steel body can also be selected.
The standard arch size is W850xH600mm, add 200mm for each larger frame, as follows for reference:
Width (W): 650/850/1050/1250 mm ~
Height (H): 400/600/800/1000 mm ~
The standard arch size is W850xH600mm, add 200mm for each larger frame, as follows for reference:
Width (W): 650/850/1050/1250 mm ~
Height (H): 400/600/800/1000 mm ~
Product Description
-
One piece of structure, tough and durable.
-
High speed of strapping action ,low rate of malfunction.
-
3 operating modes: manually start button 、table ball switch 、foot switch.
-
The length of PP band that prepare to eject 、strap tension 、heater temperature are can be adjusted.
-
Suitable W 9mm / 12mm / 15mm / 19mm PP band.
-
All Taiwan Parts 、assembly and manufacturing (made in Taiwan).
- One piece of structure, tough and durable.
- High speed of strapping action ,low rate of malfunction.
- 3 operating modes: manually start button 、table ball switch 、foot switch.
- The length of PP band that prepare to eject 、strap tension 、heater temperature are can be adjusted.
- Suitable W 9mm / 12mm / 15mm / 19mm PP band.
- All Taiwan Parts 、assembly and manufacturing (made in Taiwan).
| Power | 3Ø , 220/380/415/440 V, 50/60 Hz |
| PP width | 9,12,15,19 mm |
| Tension | Max. 90 kgs |
| Speed | 2.3 sec/strap |
| Machine Weight | 250kgs |
| Machine Size | L1460 x W606 x H1521 mm (Arch Size W850xH600mm) |
