TC-1521AL

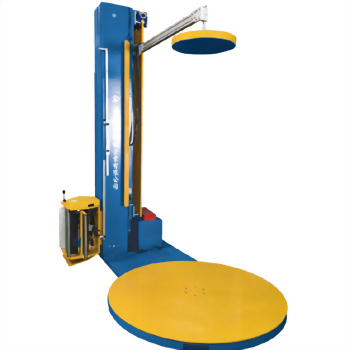

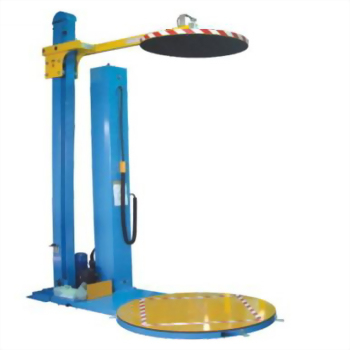

Stretch Wrapping Machine with Top Pressure Plate
With top pressure plate which holds down light and high pallet loads securely during wrapping operation.
PLC controlled, 3 levels of wrapping can be set; top, middle and bottom.
PLC controlled, 3 levels of wrapping can be set; top, middle and bottom.
**Specification can be made according to the customer's requirement.**

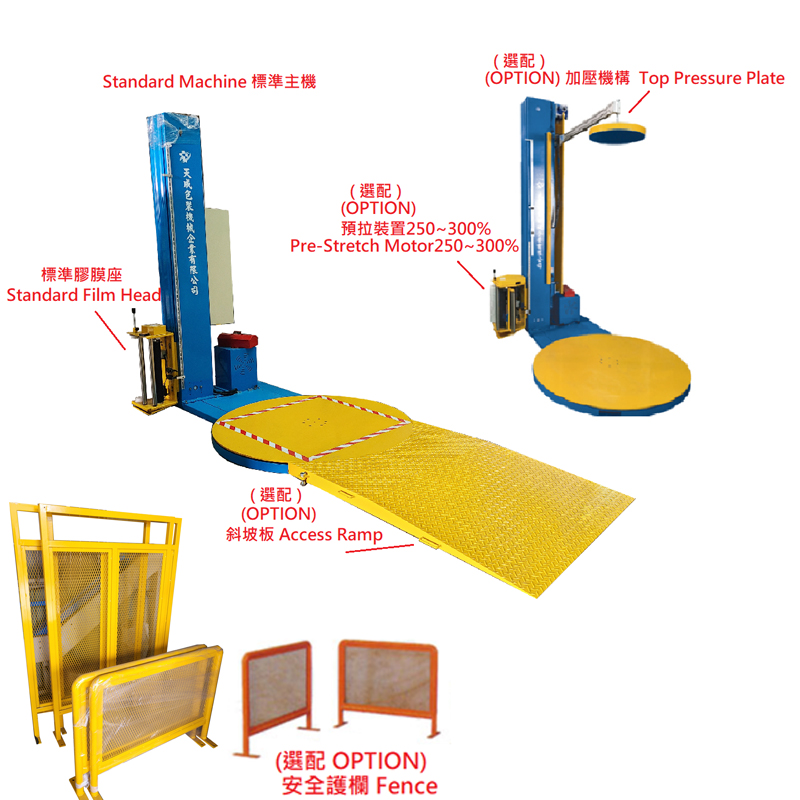

Options:Pre-Stretch 250~300%、Access Ramp.
Options:Pre-Stretch 250~300%、Access Ramp.
**Specification can be made according to the customer's requirement.**
|
Power
|
220V/380V/415V ,3Φ ,50/60Hz |
|
Wrapping height
|
2100 mm |
|
Air
|
5kg/cm2 |
|
Turntable speed
|
0~15 rpm /min adjustable |
|
Loading
|
2000kgs； Machine Weight:720kgs |
|
Machine size
|
L2700 x W1500 x H2850 m/m |
