TC-1526AC

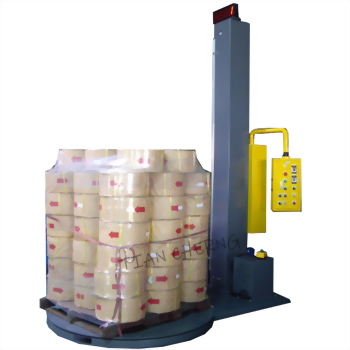

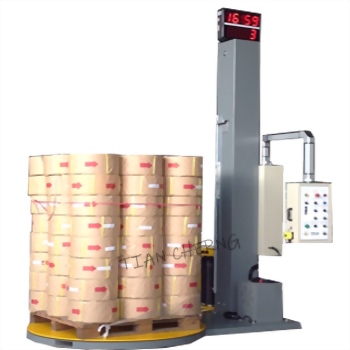

Auto Pallet Wrapping Machine
Options:Pre-stretch system, access ramp, top pressure plate.
Product Description
-
PLC controlled, can be set up for 3 levels of wrapping top, middle and bottom can also be manually operated.
-
Option pre-stretch 250~300%
-
come with clock and count mechanism, more convenient to record the number of wrapping
-
3 sets of limit switches to ensure operation safety.
-
Slow and smooth starting turntable to safe guard pallet load. auto tear off design.
-
Specification can be made according to the customer's requirement.
-
PLC controlled, can be set up for 3 levels of wrapping top, middle and bottom can also be manually operated.
-
Option pre-stretch 250~300%
-
come with clock and count mechanism, more convenient to record the number of wrapping
-
3 sets of limit switches to ensure operation safety.
-
Slow and smooth starting turntable to safe guard pallet load. auto tear off design.
- Specification can be made according to the customer's requirement.
**Specification can be made according to the customer's requirement.**
| Power | 3Ø , 220/380/415V, 50/60 Hz |
| Wrap height | 2600mm |
| Turntable | 1500mm |
| Turntable speed | 15rpm |
| Loading | 2000kgs , Machine Weight:600kgs |
| Machine size | L2350 x W1500 x H3040 m/m |
