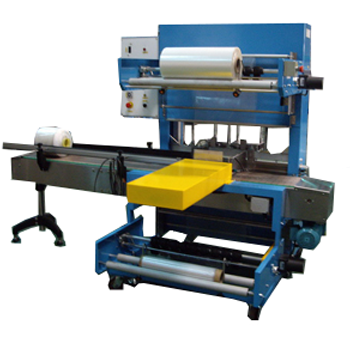

TC-708
Sleeve Sealing Machine
All Taiwan parts, assembly and manufacturing (Made in Taiwan).
The structure is durable and easy to maintain.
Customized machine with package processing design is available upon request.
OPTION: Shrink machine、 touch HMI operation screen、、machine body is made of stainless steel、can add 2 sides sealing cutting blade be installed、Labeler ...ect
The structure is durable and easy to maintain.
Customized machine with package processing design is available upon request.
OPTION: Shrink machine、 touch HMI operation screen、、machine body is made of stainless steel、can add 2 sides sealing cutting blade be installed、Labeler ...ect
Product Description
-
Suitable for group-packing or irregular goods, like two lines or many lines bottle...etc.
-
Top and bottom adopt single layer PE, PVC, POF film
-
It can link with conveyor of 90° infeed direction with air cylinder to push product or conveyor of vertical feeding the products；Conveyor with guiding plates at 2 sides for product entry, it can avoid sliding offset.
-
Apply soft plate holding while sealing & cutting without movement.
-
Apply PLC controller for stable operation performance and stable heating performance, the Heater temp. 、Sealing time 、 Cooling time and Speed can be adjusted..
- Suitable for group-packing or irregular goods, like two lines or many lines bottle...etc.
- Top and bottom adopt single layer PE, PVC, POF film
- It can link with conveyor of 90° infeed direction with air cylinder to push product or conveyor of vertical feeding the products；Conveyor with guiding plates at 2 sides for product entry, it can avoid sliding offset.
- Apply soft plate holding while sealing & cutting without movement.
- Apply PLC controller for stable operation performance and stable heating performance, the Heater temp. 、Sealing time 、 Cooling time and Speed can be adjusted..
|
Power
|
220V/380V/415V/440V 5 kg/cm² 3Φ |
|
Heat
|
2kw |
|
Machine size
|
2100 x 1000 x 1820mm |
|
Seal size
|
W400 、600 x H200 mm |
|
Speed
|
1-12 pcs/min |
