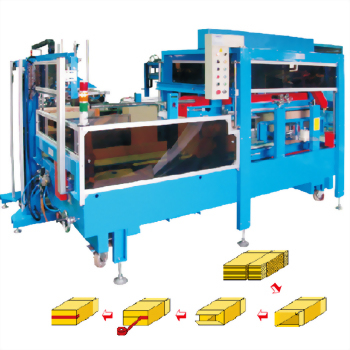

TC-503T
Auto Carton Erector and Sealer (Horizontal Type)
Suitable for larger cartons or cartons of special style.
With sensors of out-of-carton 、 erection failure、sealing failure and over loading.
PLC control,Standard components, easy to maintain.
Made in Taiwan, the sheet material is strong and durable, with guaranteed quality.
With sensors of out-of-carton 、 erection failure、sealing failure and over loading.
PLC control,Standard components, easy to maintain.
Made in Taiwan, the sheet material is strong and durable, with guaranteed quality.
**Custom Design Available**
**Custom Design Available**
Suitable for larger cartons or cartons of special style.
|
Power
|
220V/380V/415V, 50/60 Hz , 3 Phase | ||||||
|
Carton size
|
L500~700 , W300~600 , H150~500 mm | ||||||
|
Speed
|
1 ~ 6 Cases/Min | ||||||
|
Tape
|
2" (2.5",3" Optional) | ||||||
|
Table height
|
630 mm (Adjustable Range 600~700 mm) | ||||||
|
Air
|
5 kg/cm² | ||||||
|
Machine weight
|
880 kgs | ||||||
|
Machine size
|
L3000 x W2000 x H1900 mm | ||||||
