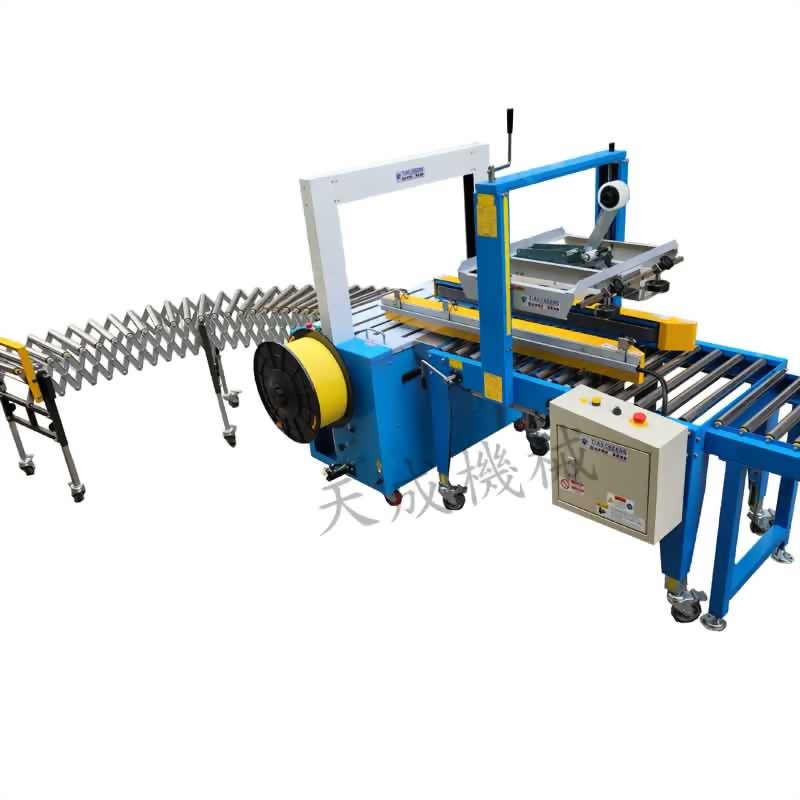

TC-1786
Full Auto Carton Sealing and Strapping System
The standard machine adopts manual adjustment model, and the fully automatic carton size detection model TC-303F can be purchased at an additional price.
Special specification can be made accoeding to customer's requirement.
All Taiwan Parts, assembly and manufacturing (made in Taiwan).
Special specification can be made accoeding to customer's requirement.
All Taiwan Parts, assembly and manufacturing (made in Taiwan).
Product Description
-
After manual loading is completed, the upper and lower of the cartons are sealing together at once time --> then the carton is automatically detected and bundled with PP straping band.
-
You can choose to strap one, two, or none band.
-
Do not need to lubricate, easy to maintain.
-
A simple sealing and bundling machine, equipped can with a non-powered roller inclined conveyor, to finish seal, pack be easily operated by one person.
- After manual loading is completed, the upper and lower of the cartons are sealing together at once time --> then the carton is automatically detected and bundled with PP straping band.
- You can choose to strap one, two, or none band.
- Do not need to lubricate, easy to maintain.
- A simple sealing and bundling machine, equipped can with a non-powered roller inclined conveyor, to finish seal, pack be easily operated by one person.
|
Power
|
3Ø , 220/380/415/440 V, 50/60 Hz |
|
PP width
|
9,12,15,19 mm |
|
Tension
|
Max. 90 kgs |
|
Speed
|
2.3 se/strap |
|
Weight
|
550kgs |
|
Size
|
L1950 x W1100 x H1650 mm |
