TC-302F

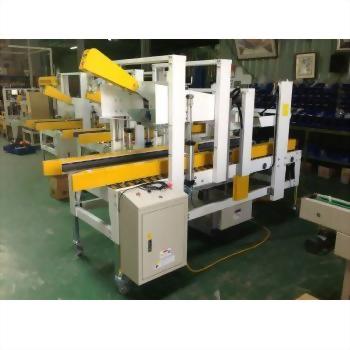

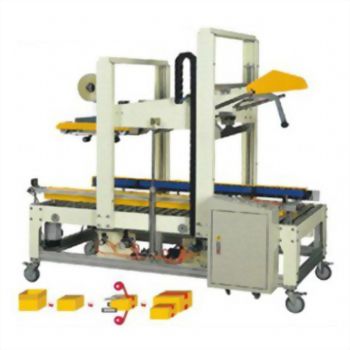

Fully Auto Top Flap Folding Carton Sealer
Fully Automatically detect different carton size、Folds upper and lower flaps .
Driven by side belts, suitable for various cartons.
Adopts pneumatic pressure to fold side flaps ,which makes folding easier.
Standard components, easy to maintain.
Driven by side belts, suitable for various cartons.
Adopts pneumatic pressure to fold side flaps ,which makes folding easier.
Standard components, easy to maintain.
**Custom Design Available**
**Custom Design Available**
|
Power
|
220V/380V/415V, 50Hz/60 Hz , 3 Phase | ||||||
|
Packing size
|
L200~500 , W150~480 , H150~500 mm | ||||||
|
Speed
|
1-10 cases/min | ||||||
|
Tape
|
2" (2.5"、3" Optional) | ||||||
|
Table height
|
600mm (Adjustable Range 580~720 mm) | ||||||
|
Air
|
5 kg/cm² | ||||||
|
Machine weight
|
260 kgs | ||||||
|
Machine size
|
L2000 x W1080 x H1680 mm | ||||||
