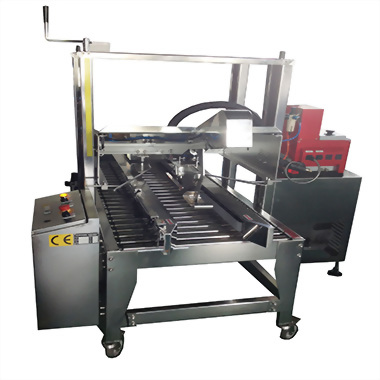

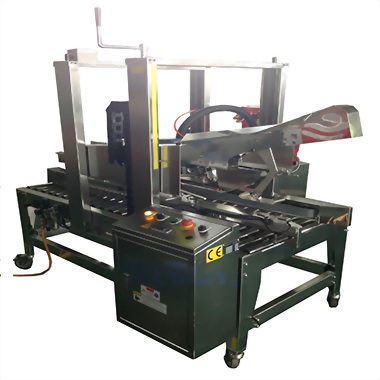

TC-301FBH (Hot Melt)
Top Flap Folding Carton Stapler
Automatically folds top, bottom and side flaps speedily and smoothly
Driven by 4 sets of belts: top, bottom and sides.
by Hot Melt type Sealing.
Adopts pneumatic pressure to fold side flaps, which makes folding easier.
Easy to operate, standard components available.
Driven by 4 sets of belts: top, bottom and sides.
by Hot Melt type Sealing.
Adopts pneumatic pressure to fold side flaps, which makes folding easier.
Easy to operate, standard components available.
**Custom Design Available**
**Custom Design Available**
| Power | 220V/380V/415V, 50/60 Hz , 3 Phase |
| Packing Size | L200~500 , W150~480 , H150~500 mm |
| Speed | 1-8 carton/min |
| Material | Hot Melt Glue |
| Tabel Height | 600mm (Adjustable Range 600~700 mm) |
| Air | 5 kg/cm² |
| Machine Weight | 260 kgs |
| Machine Size | L1690 x W900 x H1580 mm |
