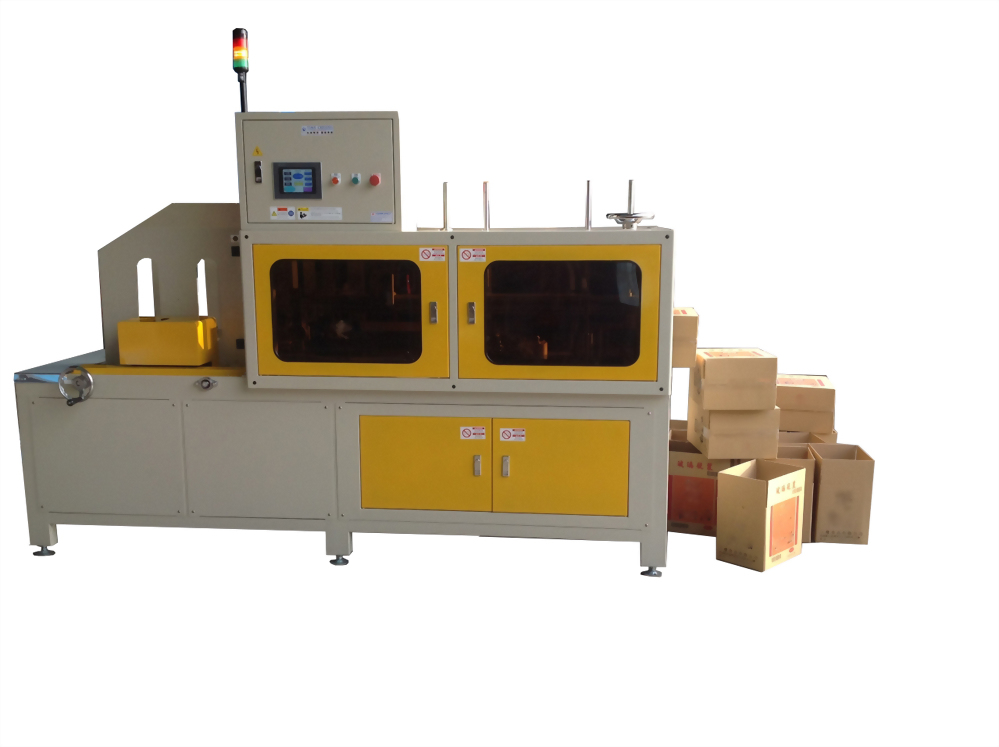

TC-501T
Auto Carton Erector and Sealer (Horizontal Type)
Erect and forms carton, folds and seals bottom flaps fully automatically.
Horizontal filling magazine design. Delivers and feeds flat unfolded cartons consistently.
User friendly and easy to adjust handle for special cartons.
PLC control.
Horizontal filling magazine design. Delivers and feeds flat unfolded cartons consistently.
User friendly and easy to adjust handle for special cartons.
PLC control.
**Custom Design Available**
**Custom Design Available**
|
Power
|
220V/380V/415V, 50/60 Hz , 3 Phase | ||||||
|
Carton size
|
L200~400, W250~400 , H200~400 mm | ||||||
|
Speed
|
4~12 Cases/Min | ||||||
|
Tape
|
2" (2.5"、3" Optional) | ||||||
|
Table height
|
630 mm (Adjustable Range 600~700 mm) | ||||||
|
Air
|
5 kg/cm² | ||||||
|
Machine weight
|
500 kgs | ||||||
|
Machine size
|
L2800 x W1100 x H1800 mm | ||||||
