TC-1521ARC

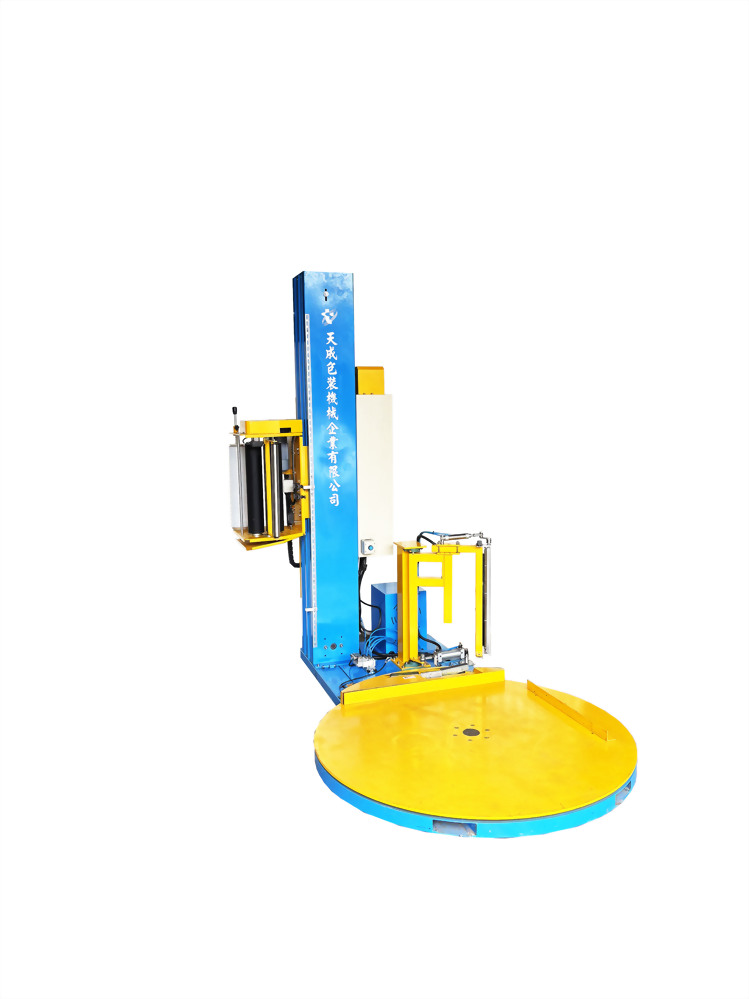

Automatic Pallet Stretch Wrapping Machine – Remote Control Model
PLC controlled, can be set up for 3 levels of wrapping top, middle and bottom can also be manually operated.
3 sets of limit switches to ensure operation safety.
Slow and smooth starting turntable to safe guard pallet load. auto tear off design.
3 sets of limit switches to ensure operation safety.
Slow and smooth starting turntable to safe guard pallet load. auto tear off design.
- Equipped with PLC automatic control, allowing the wrapping pattern for the top, middle, and bottom layers to be set freely, with an option for manual operation.
- The film roll installation is simple and user-friendly.
- Features automatic film clamping, cutting, and smoothing, with a fully automated film-breaking mechanism.
- A photo sensor automatically detects the height of the load.
- The pre-stretch ratio of the stretch film is adjustable.
- Equipped with three sets of upper- and lower-limit safety switches to ensure safe operation and proper functioning of the automatic film-cutting device.
- Operated via remote control, with a soft-start turntable design to maintain load stability.
- This allows operators to start or stop the wrapping cycle easily even while operating a forklift.
|
Power
|
3Ø , 220/380/415 V, 50/60 Hz |
|
Wrap height
|
2100mm |
|
Turntable
|
1800 / 2000mm |
|
Turntable speed
|
0~15rpm adjustable |
|
Loading
|
2000kgs ； Machine Weight:680kgs |
|
Machine size
|
L2350 x W1800 x H2440 m/m
L2350 x W2000 x H2440 m/m |
