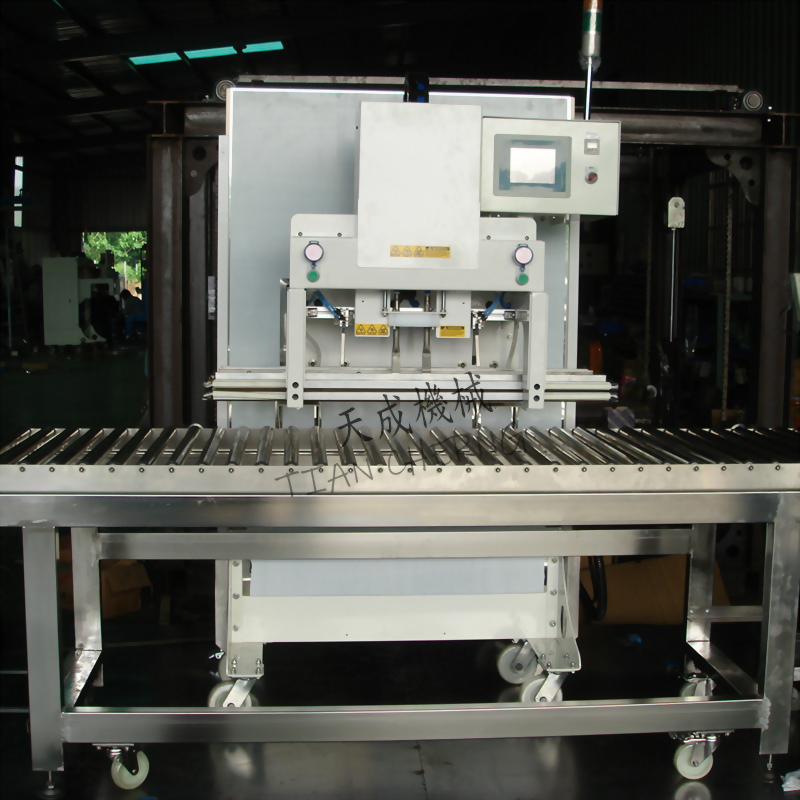

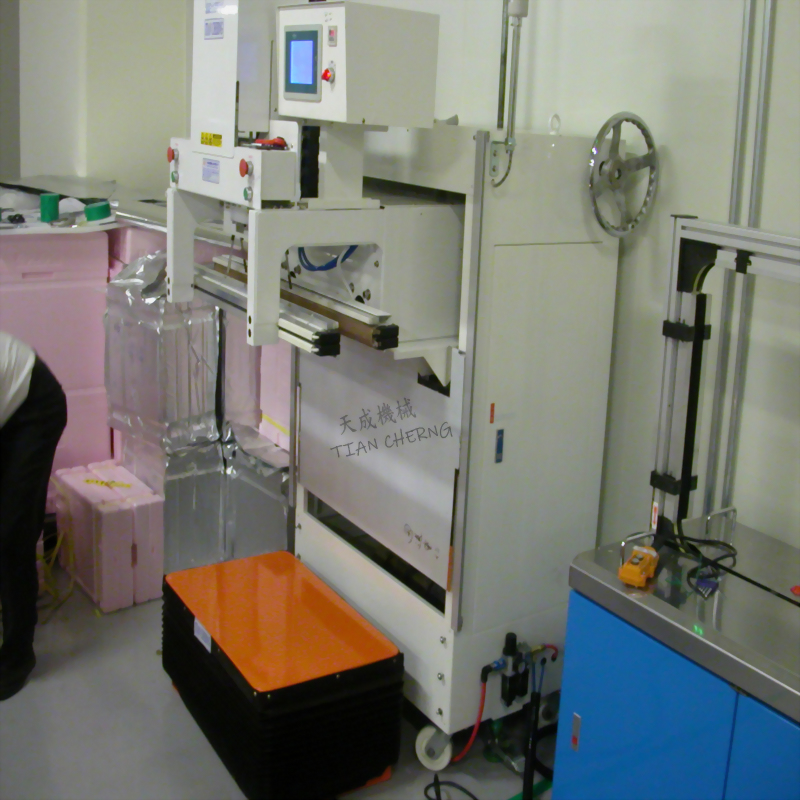

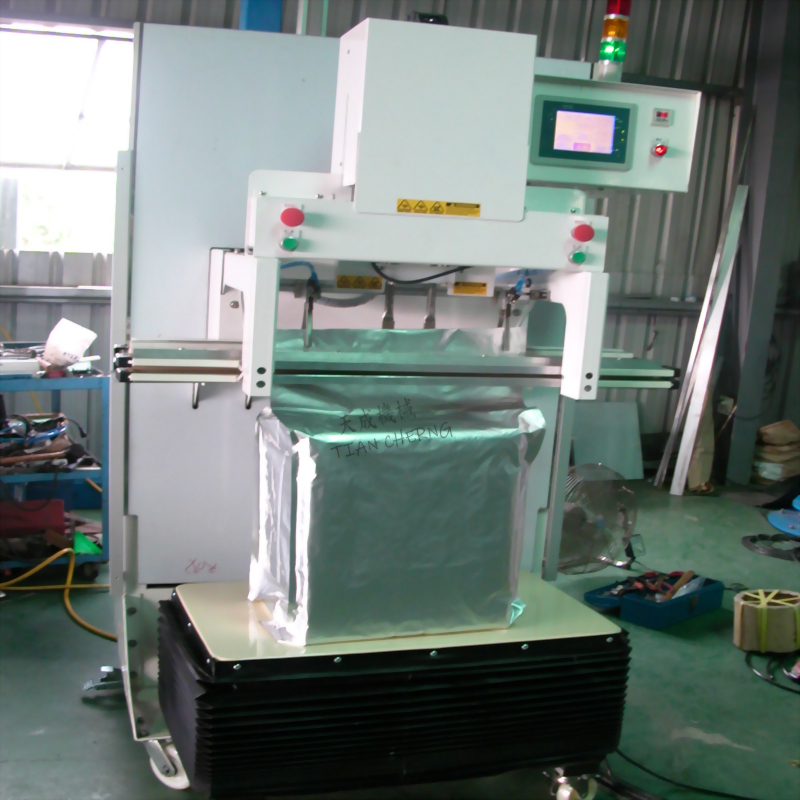

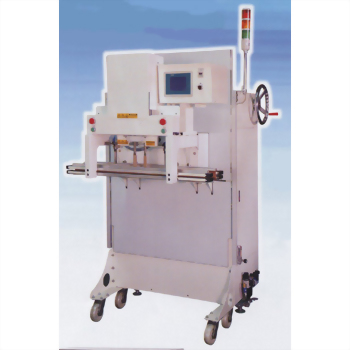

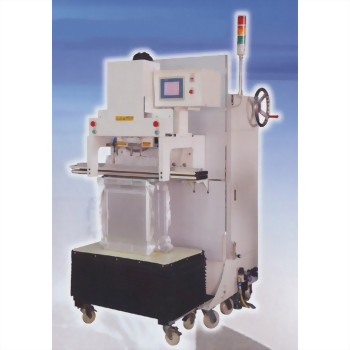

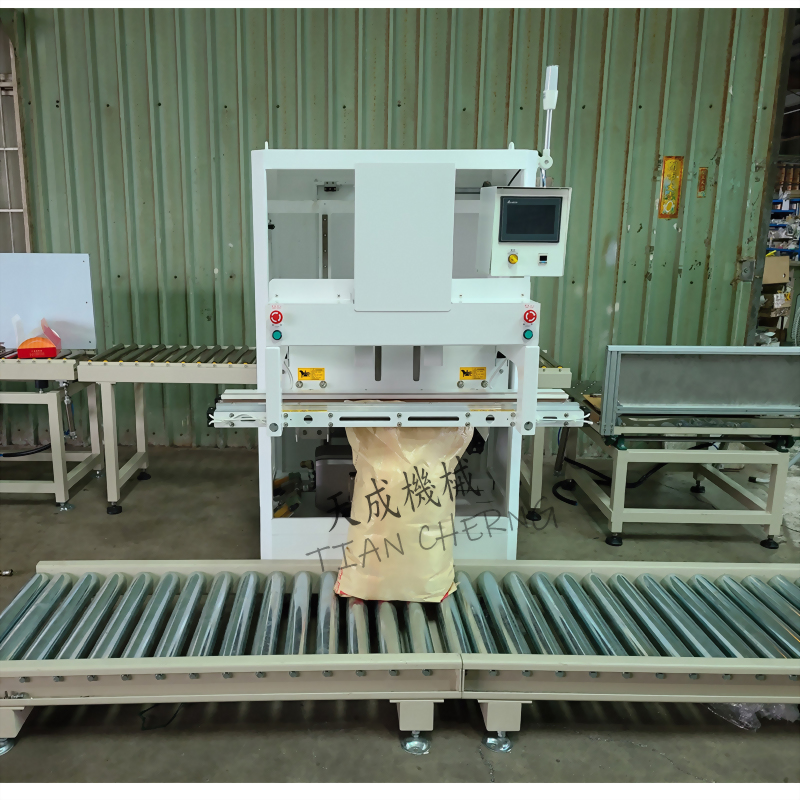

TC-1000POV / TC-1200POV /TC-1500POV
Stainless Steel Nozzle Type Vacuum Packing Machine
It can be connceted to fully automatic packing line.
Product Description
We have many experiences in manufacturing Plastic Bag Cutting, Weighing Sealing Machine, Vacuum Machine, and Lifting Arm.
-
Suitable for packing large size of goods. For example, PP box.
-
Two sets of nozzles which make sucking fast. Height of operation is adjustable by using vertical rail.
-
Air flux is controlled by two step of suction.
-
Two sets of safe start button. Overheat protection while sealing. Emergency stop. Two sets of grippers.
-
PLC control.
- Suitable for packing large size of goods. For example, PP box.
- Two sets of nozzles which make sucking fast. Height of operation is adjustable by using vertical rail.
- Air flux is controlled by two step of suction.
- Two sets of safe start button. Overheat protection while sealing. Emergency stop. Two sets of grippers.
-
PLC control.
| Power | 220 V, 50/60 Hz , 3 Phase |
| Sealing Lengh |
1000 x 10mm x 2 line /4 line 1200 x 10mm x 2 line /4 line 1500 x 10mm x 2 line /4 line |
| Pump | 2 HP |
| Air | 5 kg/cm2 |
| Machine Size |
1200 x 920 x 1650 mm 1400 x 920 x 1650 mm
1800 x 920 x 1650 mm |
| Sealing Line Height | 500~900mm can adjusted |
| Air Venting |
250/255 kg |
