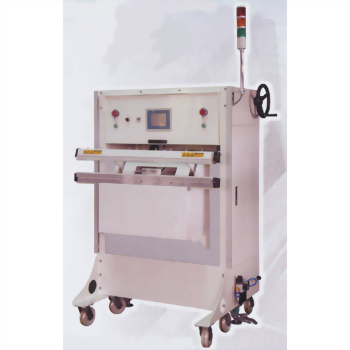

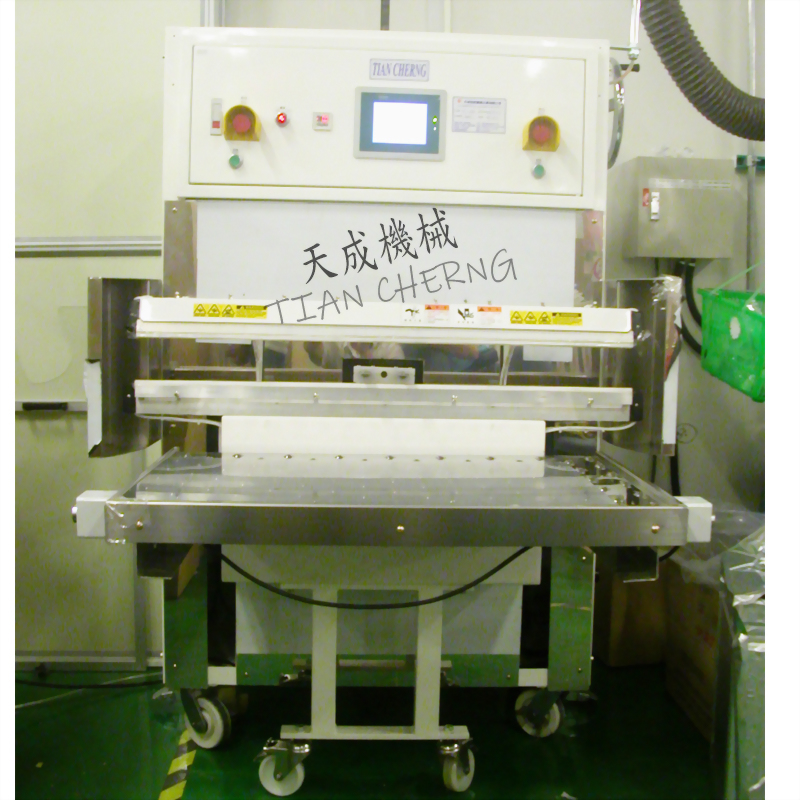

TC-1000POS/TC-1200POS
Stainless Steel Nozzle Type Vacuum Packing Machine
roduct Description
Aside from Vacuum Packing Machine, we also provide professional Stretch Wrapping Machine, Movable Wrapping Machine, Package Wrapping Machine, etc.
-
Suitable for packing flat and wide goods. For example, PP box.
-
Two sets of nozzles which make sucking fast. Height of operation is adjustable by using vertical rail.
-
Air flux is controlled by two step design.
-
Two sets of safe start button. Overheat protection while sealing. Emergency stop.
- Suitable for packing flat and wide goods. For example, PP box.
- Two sets of nozzles which make sucking fast. Height of operation is adjustable by using vertical rail.
- Air flux is controlled by two step design.
- Two sets of safe start button. Overheat protection while sealing. Emergency stop.
|
Power
|
220 V, 50/60 Hz , 3 Phase | ||||||
|
Sealing
|
1000 x 10mm x 2 line/4 line 1200 x 10mm x 2 line/4 line |
||||||
|
Pump
|
2 HP | ||||||
|
Air
|
5kg/cm2 | ||||||
|
Machine size
|
1100 x 1550 x 1380 mm 1350 x 1550 x 1380 mm |
||||||
|
Sealing height
|
700mm adjustable | ||||||
|
Air venting
|
250/255 kg |
||||||
|
Control
|
PLC interface | ||||||
