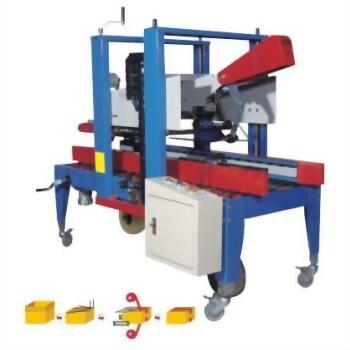

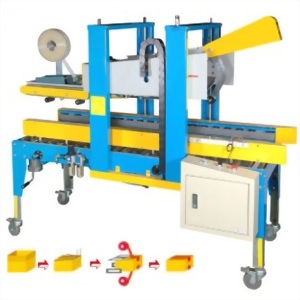

TC-301FB
Top Flap Folding Carton Sealer
As a leading Manufacturer of Sealing Machine, we provide first-rate Top Flap Folding Carton Sealer that meets specific technical and performance requirements.
Automatically folds top, bottom and side flaps speedily and smoothly
Driven by 4 sets of belts: top, bottom and sides.
Adopts pneumatic pressure to fold side flaps, which makes folding easier.
Easy to operate, standard components available.
Automatically folds top, bottom and side flaps speedily and smoothly
Driven by 4 sets of belts: top, bottom and sides.
Adopts pneumatic pressure to fold side flaps, which makes folding easier.
Easy to operate, standard components available.
**Custom Design Available **
**Custom Design Available **
|
Power
|
220V/380V/415V, 50/60 Hz , 3 Phase | ||||||
|
Packing size
|
L200~500 , W150~480 , H150~500 mm | ||||||
|
Speed
|
1~15 Cases/Min | ||||||
|
Tape
|
2" (2.5"、3" Optional) | ||||||
|
Table height
|
650 mm (Adjustable Range 600~700 mm) | ||||||
|
Air
|
5 kg/cm² | ||||||
|
Machine weight
|
260 kgs | ||||||
|
Machine size
|
L1680 x W1080 x H1640 mm |
||||||
